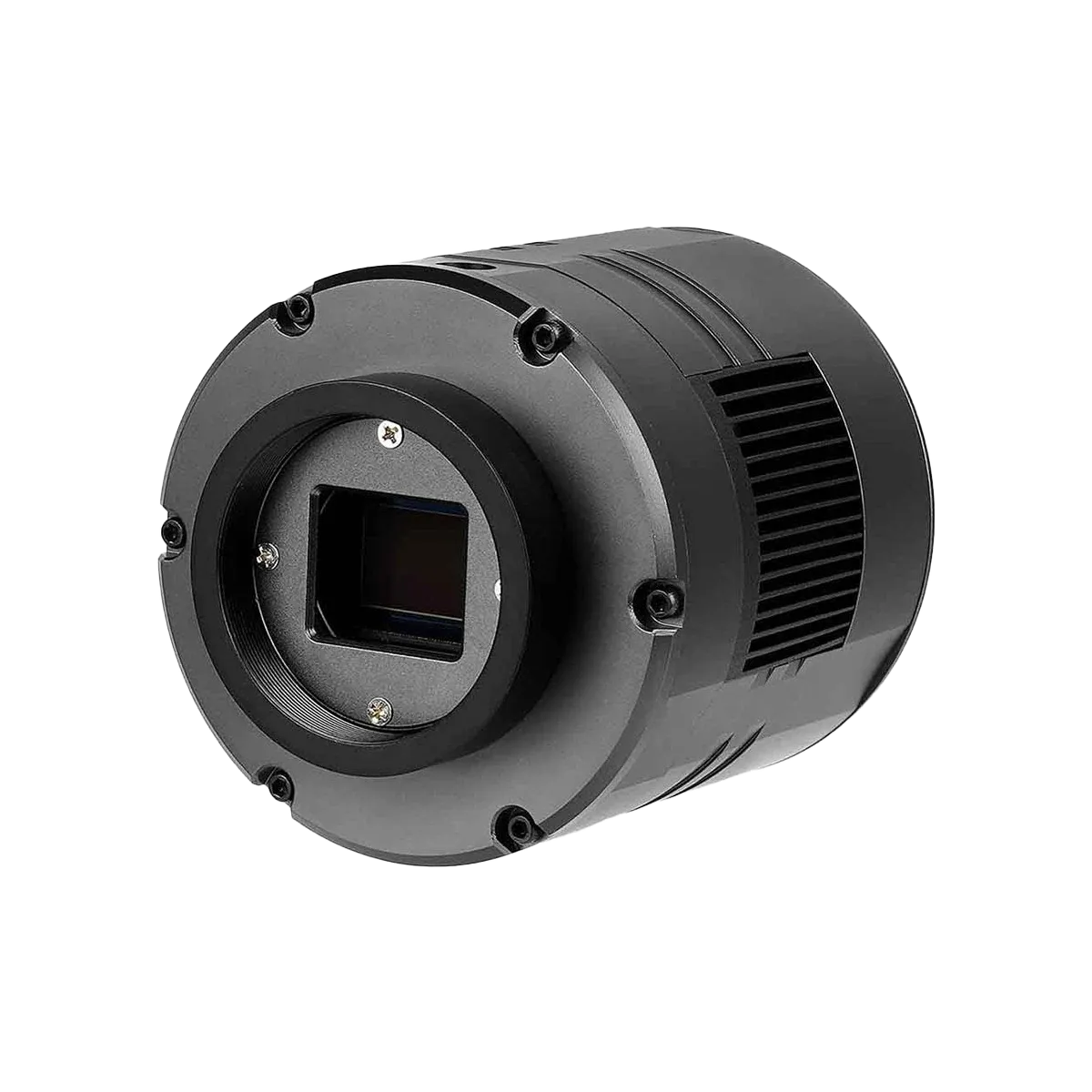

SV405CC Cooled Color OSC Camera for Deep Space Astrophotography IMX294
17 | ReviewsOfficial Store Exclusive – Buy now to earn points for a limited time.+60 Points
Key Features
Equipped with the IMX294 color CMOS sensor, the camera offers 4/3 format and delivers true 4K output at 120 frames per second, ensuring sharp, high-resolution images.
With a USB 3.0 interface, the SV405CC supports 5GB bandwidth, enabling 19 fps in raw8 mode and 16 fps in raw16 mode at full resolution (11.7 million pixels) for smooth, high-speed image capture.
The two-stage TEC cooling system lowers the CMOS sensor temperature by 86°F below ambient, reducing dark current and sensor noise, even during long-exposure astrophotography.
The SV405CC is compatible with Windows, Linux, Mac OS, Chrome OS, and Raspberry Pi, supporting popular software like Sharpcap, N.I.N.A., and TheSkyX through the ASCOM platform. Free shipping and duty-free included!
The SV405CC is perfect for deep-sky astrophotography, capturing stunning images of nebulae, galaxies, star clusters, and multiple star systems with excellent color accuracy and detail.
2. High-Resolution IMX294 CMOS Sensor
⚡ Shipped: 72 hrs after ordering (Pre-sale products excluded).
🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR THIS PRODUCT
🔒 Secure Payments | SSL Encrypted
💰️ 30-Day Money-Back Guarantee
🛡️ Hassle-Free Warranty | No Hidden Fees
🎧 Lifetime Customer Support
💳 Payment Methods
SV405CC OSC Astronomy Camera IMX294 for Deep Sky Astrophotography

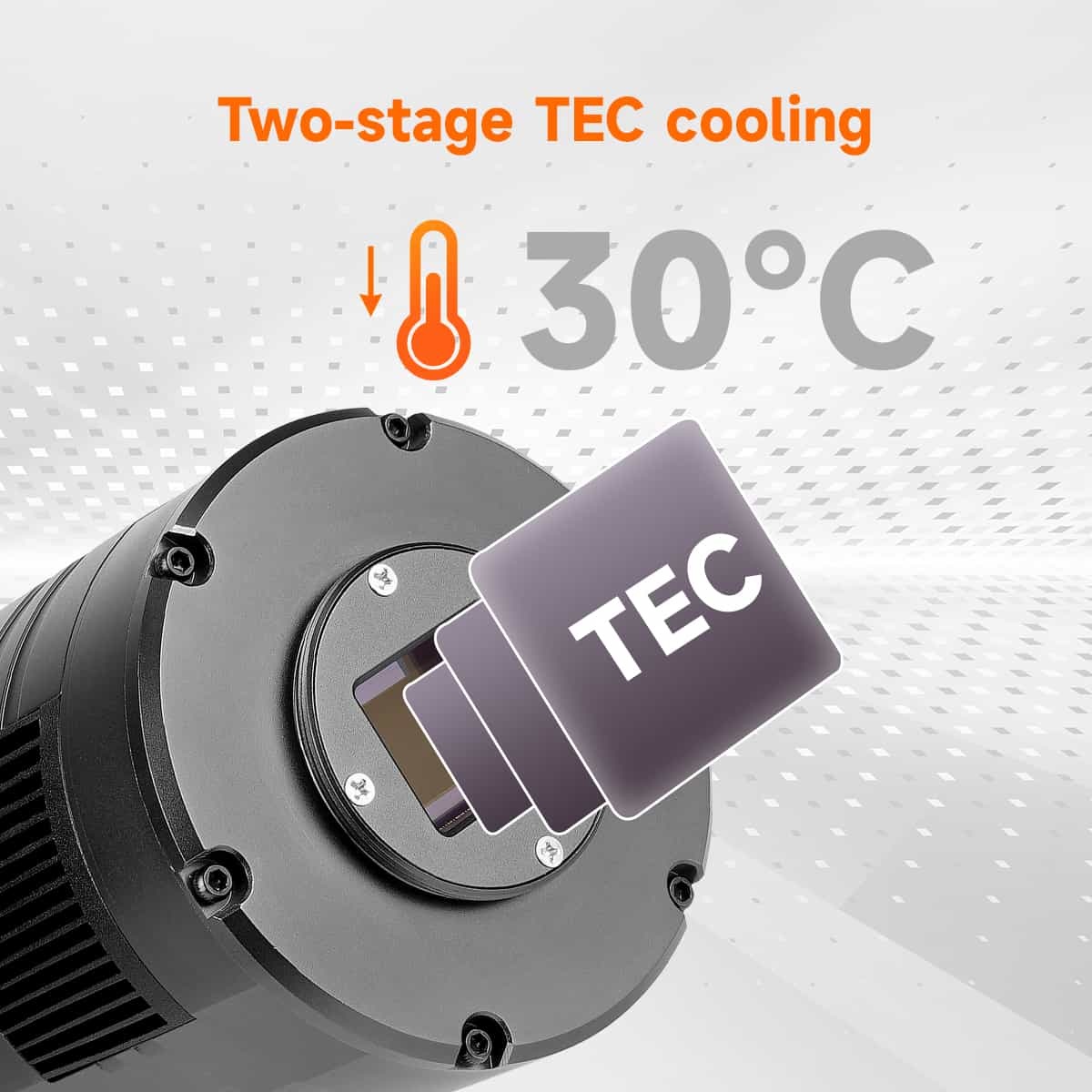

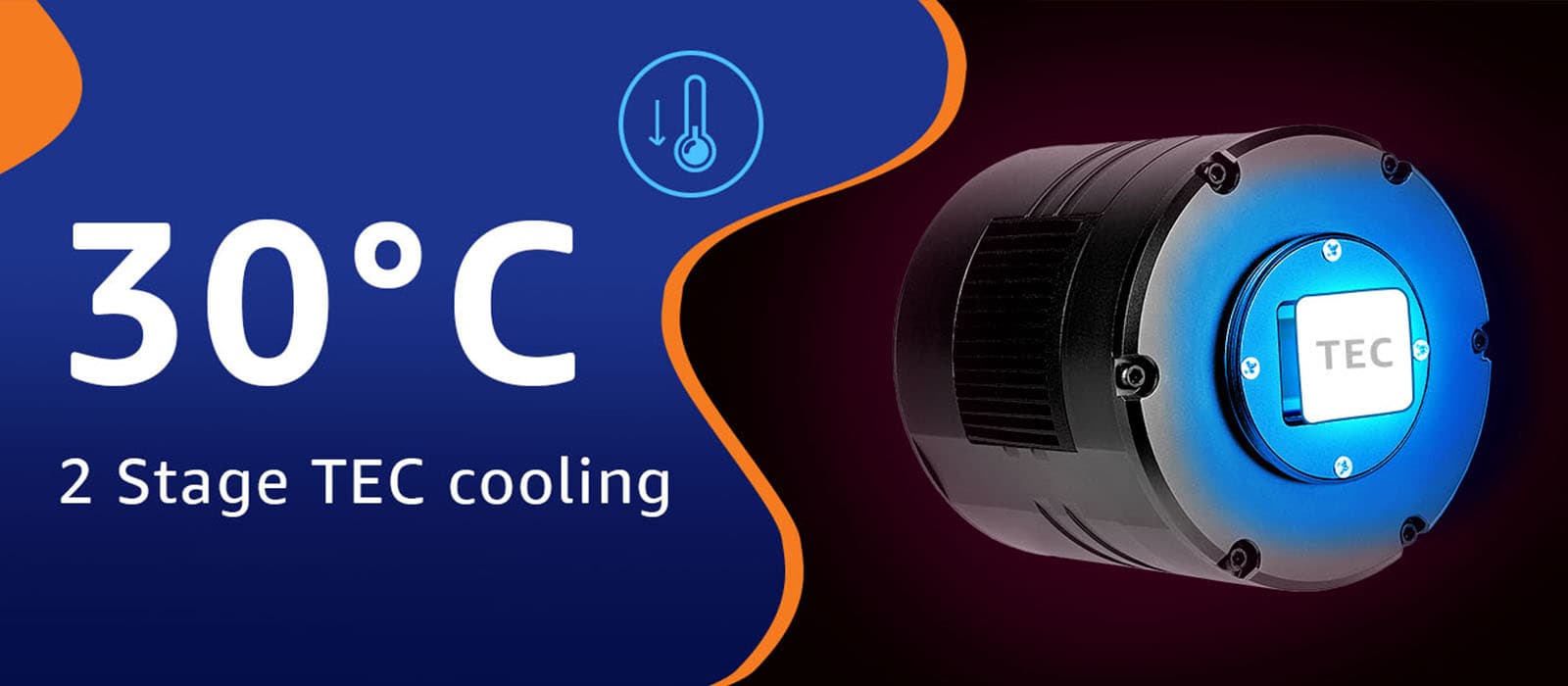

2- Stage TEC Cooling
Cooling System: The two-stage TEC cooling, the SV405CC cooled color astronomy camera can lower the CMOS sensor temperature to 30°C Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during longer exposure times.

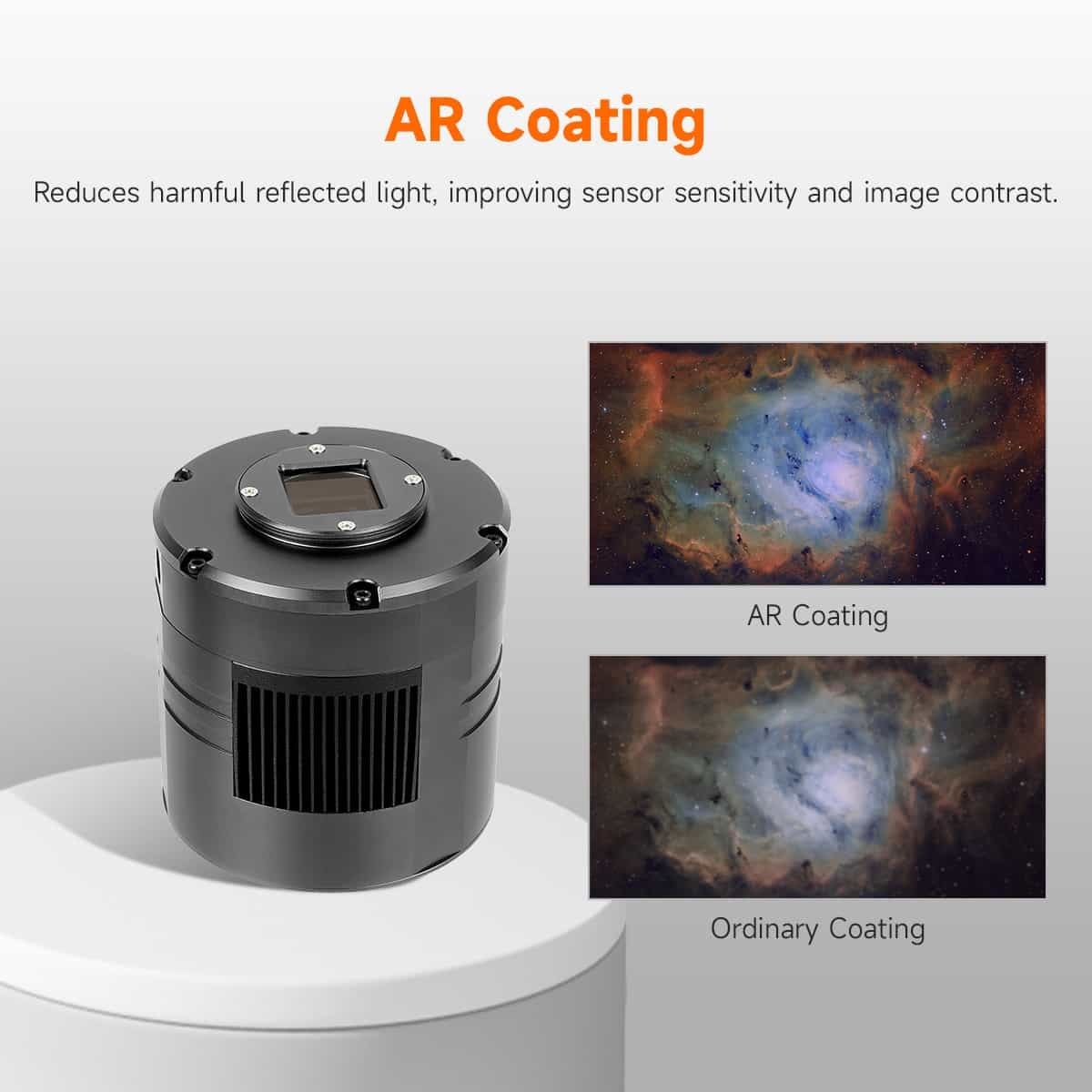

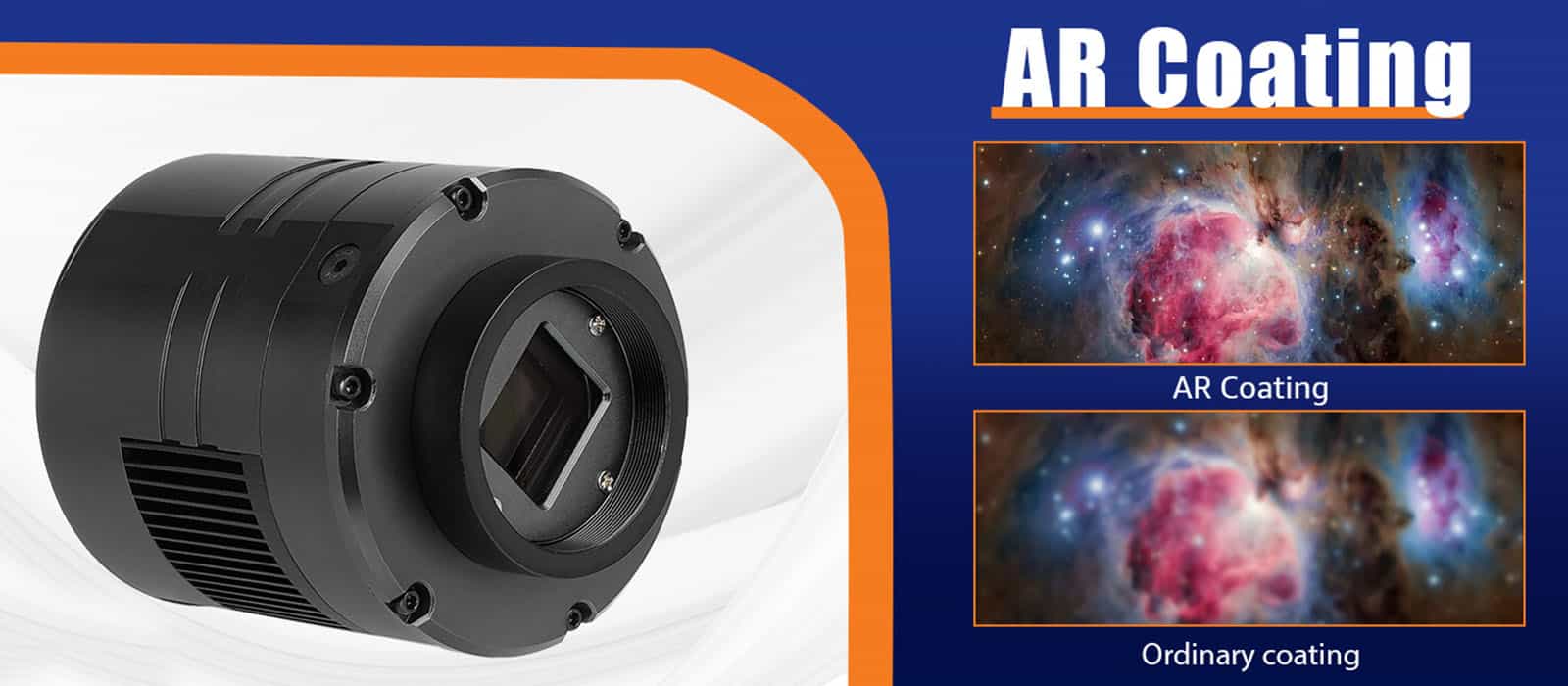

AR Coating
The coating of the protective glass increases the transmittance of the infrared band.

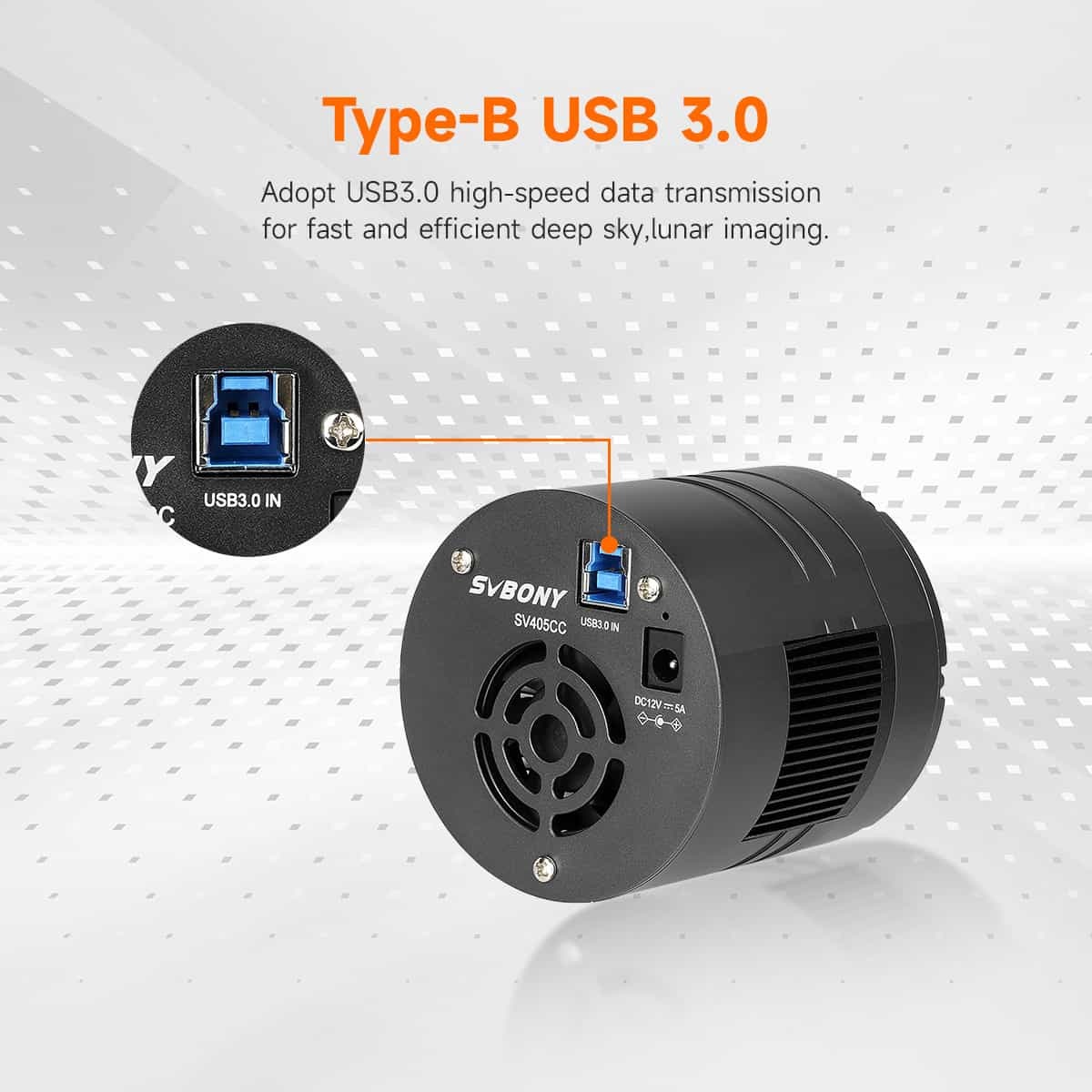

Type-B USB 3.0

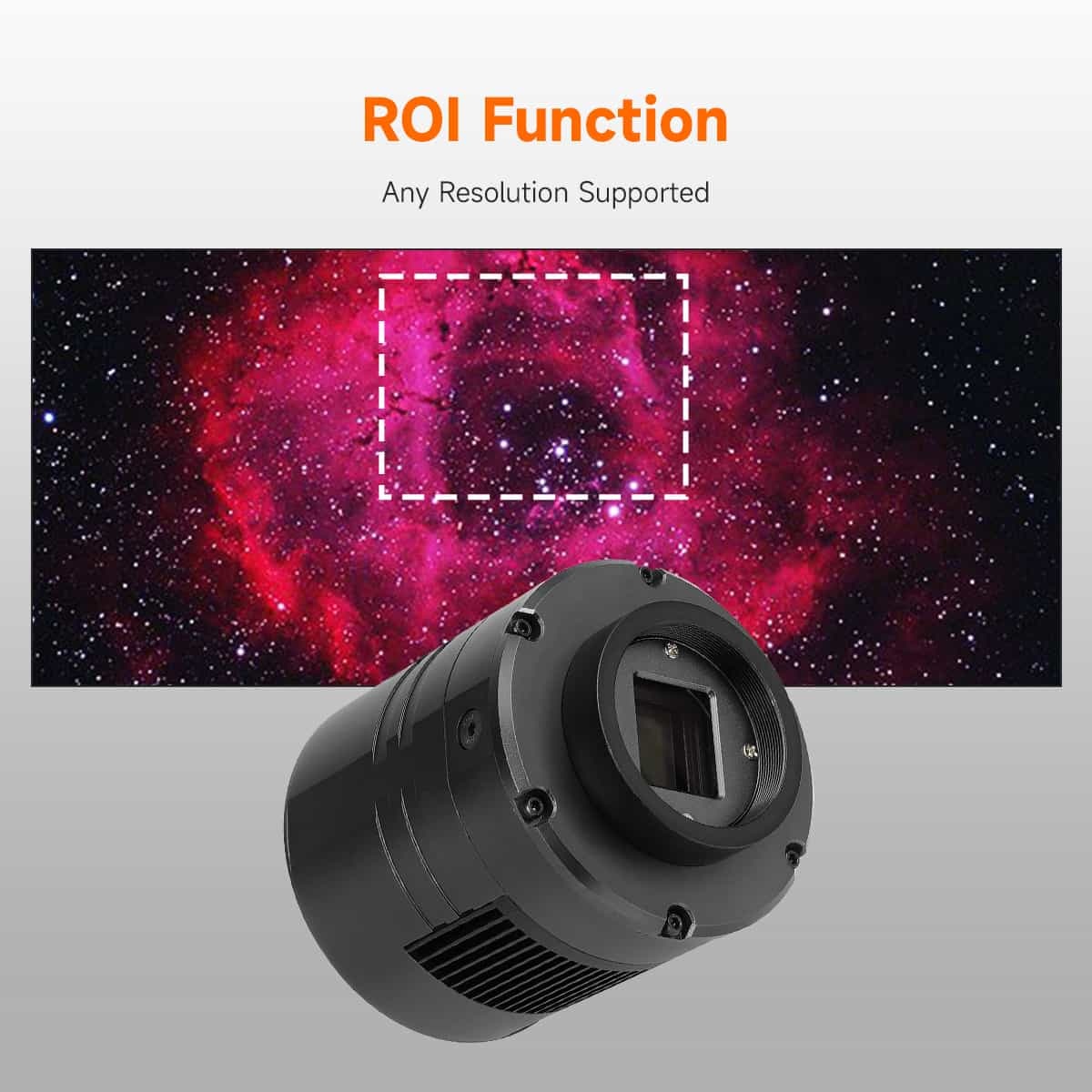

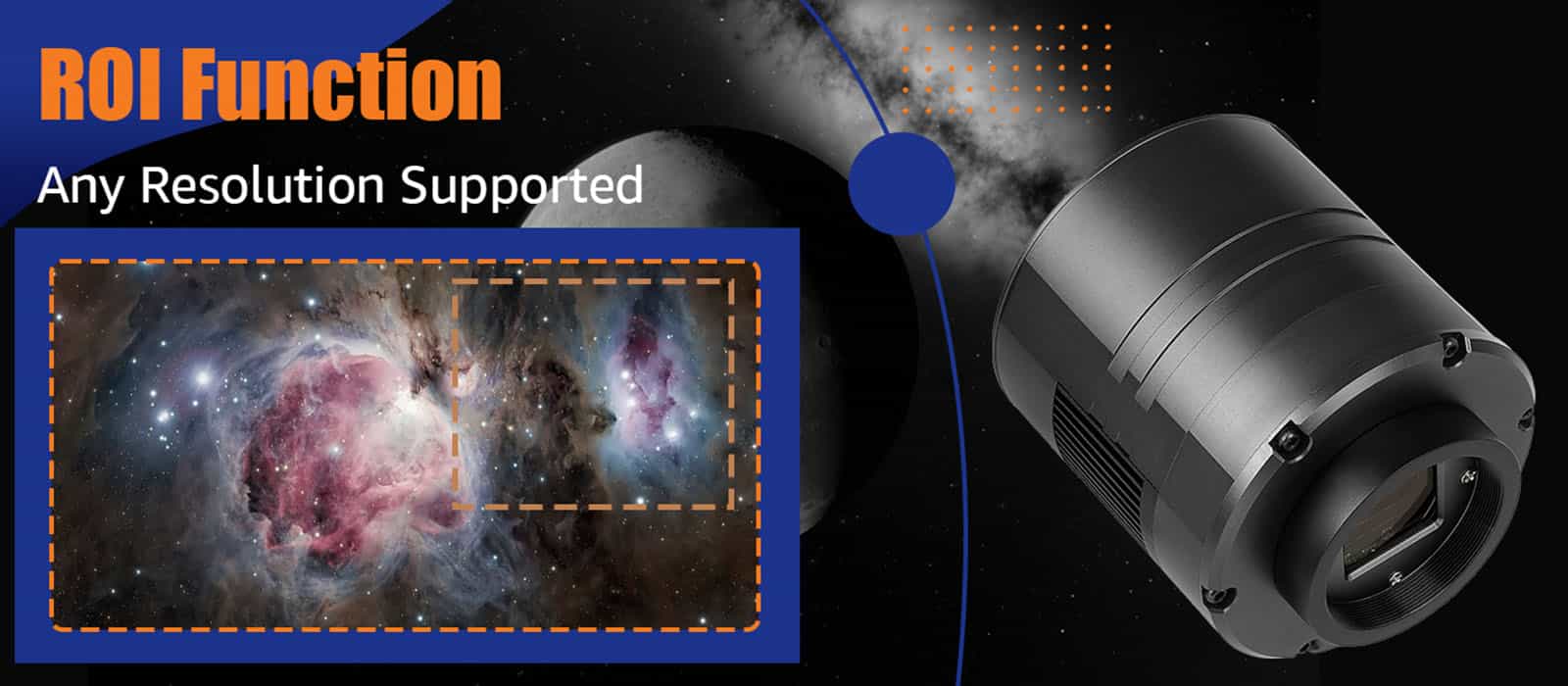

ROI Function - Any Resolution Supported

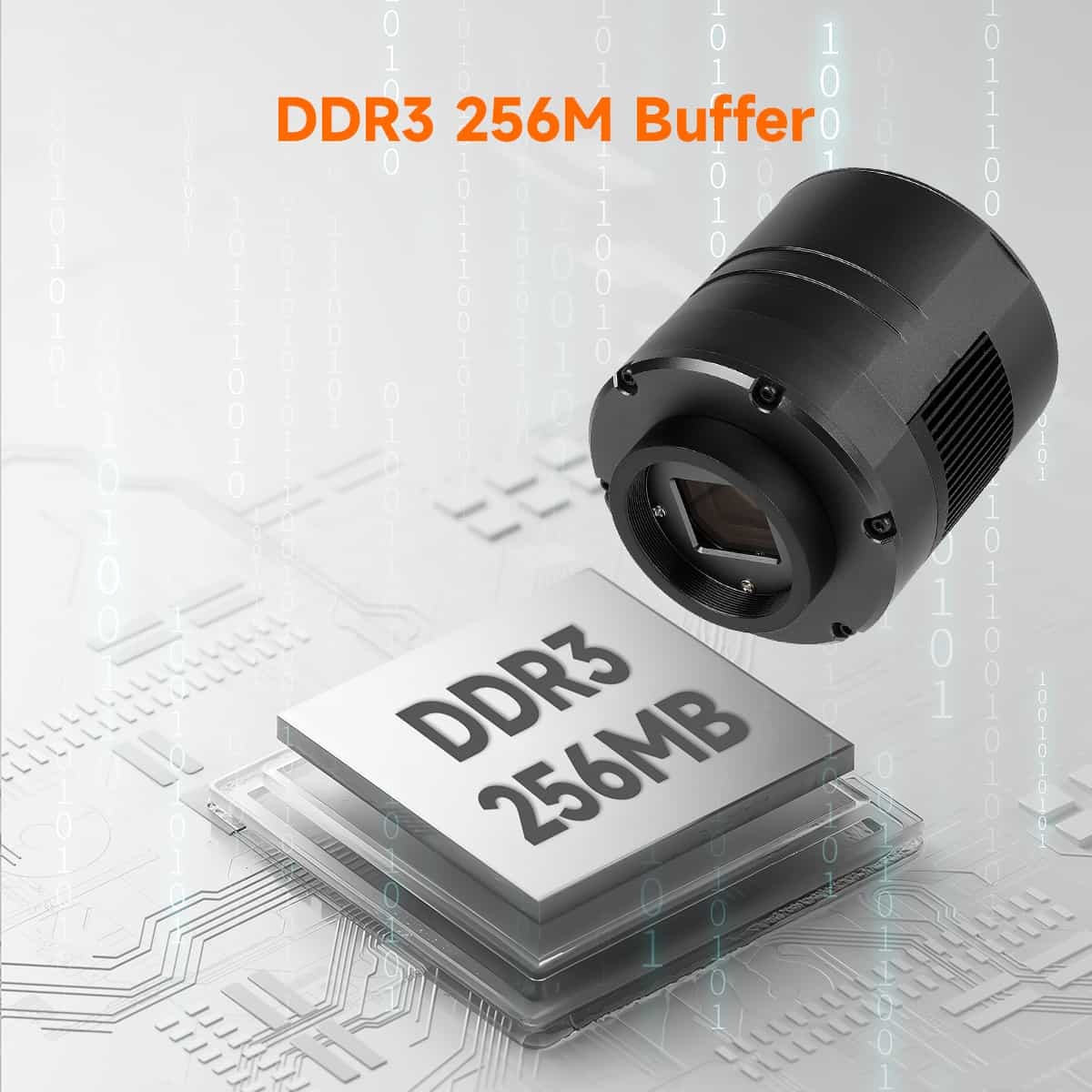

DDR3 256M Buffer

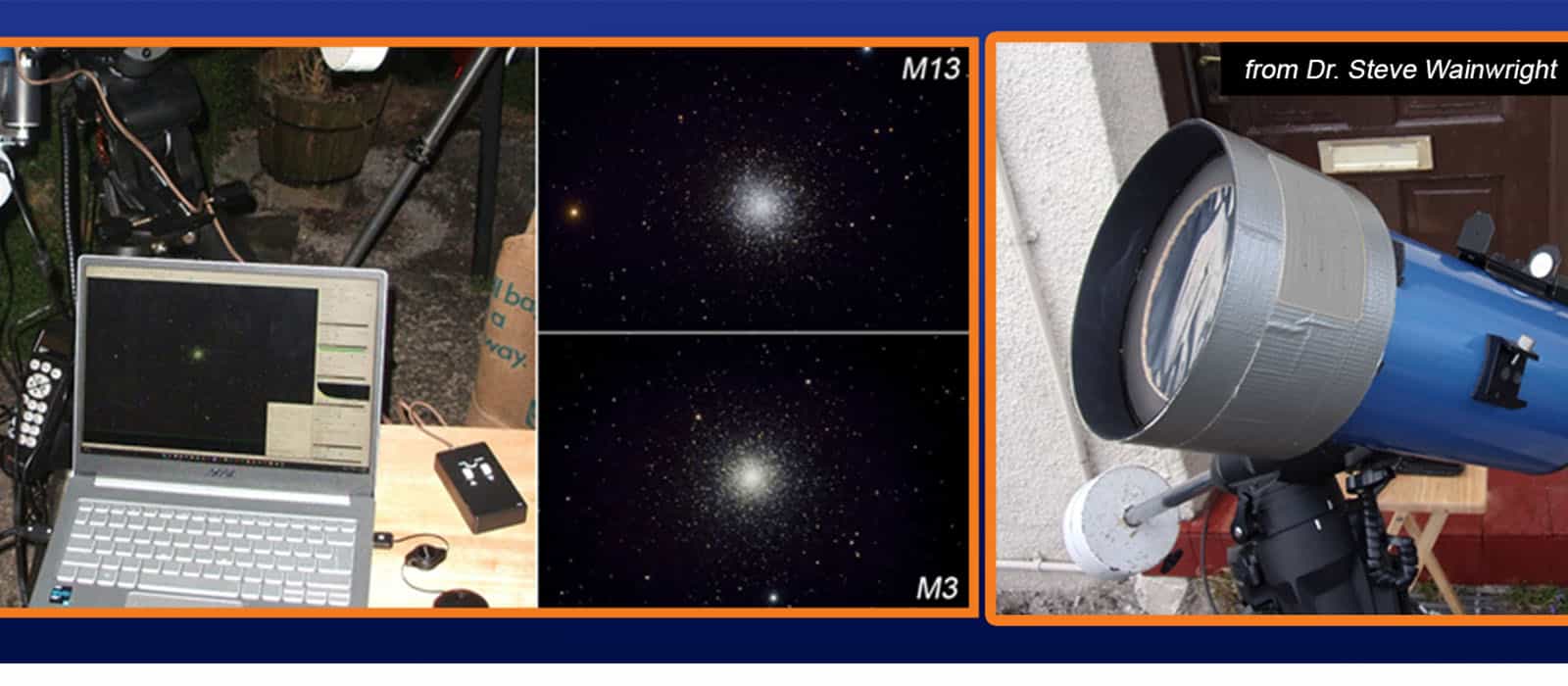

The Image Captured With SV405CC
| SKU | F9198E | F9198F | F9198K | F9387A |
| Model | SV605MC | SV405CC | SV605CC | SC432M |
| Sensor | IMX533 | IMX294 | IMX533 | IMX432 |
| Classification | Monochrome | Color | Color | Monochrome |
| Shutter Type | Rolling Shutter | Rolling Shutter | Rolling Shutter | Global Shutter |
| Pixel Size | 3.76μm X 3.76μm | 4.63µm | 3.76μm X 3.76μm | |
| Resolution | 9MP | 11.7MP | 9MP | |
| Diagonal Length | 15.968mm | 23.2mm | 15.968mm | 17.5mm |
| USB Type | USB3.0 | USB3.0 | USB3.0 |
SV405CC OSC Astronomy Camera IMX294 for Deep Sky Astrophotography
2- Stage TEC Cooling
Cooling System: The two-stage TEC cooling, the SV405CC cooled color astronomy camera can lower the CMOS sensor temperature to 30°C Celsius below ambient temperature, which can greatly reduce dark current generation and sensor noise even during longer exposure times.
AR Coating
The coating of the protective glass increases the transmittance of the infrared band.
Type-B USB 3.0
ROI Function - Any Resolution Supported
DDR3 256M Buffer
The Image Captured With SV405CC
| SKU | F9198E | F9198F | F9198K | F9387A |
| Model | SV605MC | SV405CC | SV605CC | SC432M |
| Sensor | IMX533 | IMX294 | IMX533 | IMX432 |
| Classification | Monochrome | Color | Color | Monochrome |
| Shutter Type | Rolling Shutter | Rolling Shutter | Rolling Shutter | Global Shutter |
| Pixel Size | 3.76μm X 3.76μm | 4.63µm | 3.76μm X 3.76μm | |
| Resolution | 9MP | 11.7MP | 9MP | |
| Diagonal Length | 15.968mm | 23.2mm | 15.968mm | 17.5mm |
| USB Type | USB3.0 | USB3.0 | USB3.0 |
